CD4536BPW | Texas Instruments

Programmable timer, TSSOP-16, Texas Instruments CD4536BPW

Order No.: 56S5559
MPN:
CD4536BPW
Series: 4000
CD4536BPW Texas Instruments Logic Devices

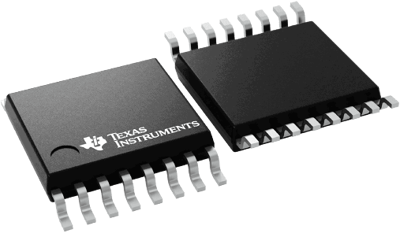

Image may differ
Unit Price (€ / pc.)
0.7021 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
63.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
90 pcs.
0.7021 €

Programmable Timer, CD4536BPW, Texas Instruments

The CD4536BPW is a programmable timer consisting of 24 ripple-binary counter stages. The salient feature of this device is its flexibility. The device can count from 1 to 224 or the first 8 stages can be bypassed to allow an output, selectable by a 4-bit code, from any one of the remaining 16 stages. It can be driven by an external clock or an RC oscillator that can be constructed using on-chip components. Input IN1 serves as either the external clock input or the input to the on-chip RC oscillator. OUT1 and OUT2 are connection terminals for the external RC components. In addition, an on-chip monostable circuit is provided to allow a variable pulse width output. Various timing functions can be achieved using combinations of this capability.

A logic 1 on the 8-BYPASS input enables a bypass of the first 8 stages and makes stage 9 the first counter stage of the last 16 stages. Selection of one of 16 outputs is accomplished by the decoder and the BCD inputs A, B, C, and D. MONO IN is the timing input for the on-chip monostable oscillator. Grounding of the MONO IN terminal through a resistor of 10K ohms or higher disables the one-shot circuit and connects the decoder directly to the DECODE OUT terminal. A resistor to VDD and a capacitor to ground from the MONO IN terminal enables the one-shot circuit and controls its pulse width.

Features

  • On-chip RC oscillator provision
  • Clock inhibit input
  • Schmitt-trigger in clock line permits operation with very long rise and fall times
  • On-chip monostable output provision
  • Test mode allows fast test sequence
  • Standardized, symmetrical output characteristics
Technical specifications
Filter Property Value
Assembly SMD
max. operating temperature 125 °C
Input voltage 18 V
Product type programmable timer
min. operating temperature -55 °C
Enclosure TSSOP-16
Compliance
Property Value
Date of RoHS guidelines 6/8/11
RoHS conform Yes
SVHC free Yes
