CD4099BE | Texas Instruments

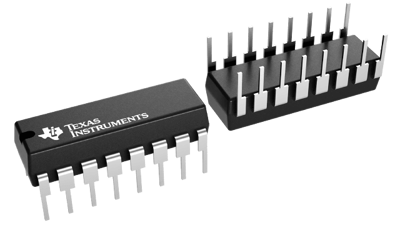

8 bit addressable latch, CMOS, PDIP-16, Texas Instruments CD4099BE
Order No.: 60S7550
MPN:
CD4099BE
Unit Price (€ / pc.)
1.6065 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4875 €
50 pcs.
1.3685 €
200 pcs.
1.3090 €
500 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale
Addressable Latch, CD4099BE, Texas Instruments
The CD4099BE 8-bit addressable latch is a serial-input, parallel-output storage register that can perform a variety of functions. Data is inputted to a particular bit in the latch when that bit is addressed (by means of input A0, A1, A2) and when WRITE DISABLE is at a low level.
Features
- Active parallel output
- Storage register capability
- Master clear
- Can function as demultiplexer
- Standardized, symmetrical output characteristics
Applications
- Multi-line decoders
- A/D converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 8 bit addressable latch | |
| Version | CMOS | |
| Enclosure | PDIP-16 | |
| Assembly | THT | |
| Input voltage | 0.5 V | |
| Output current | 6.8 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
