CD4085BE | Texas Instruments

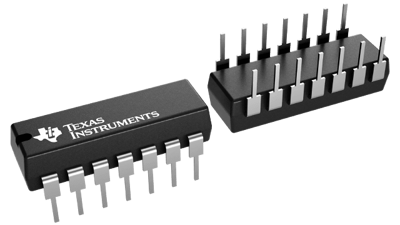

Dual AND-OR inversion CMOS gate, with 2 inputs, PDIP-14, Texas Instruments CD4085BE
Order No.: 60S7100
MPN:
CD4085BE
Unit Price (€ / pc.)
0.6307 € *
Standard delivery time from the manufacturer is: 1 Week
Dual 2-Wide 2-Input, CD4085BE, Texas Instruments
The CD4085BE contains one AND-OR-INVERT gate consisting of two 2-input AND gates driving a 3-input NOR gate. An individual inhibit control is provided for the A-O-I gate.
Features
- Individual inhibit controls
- Standardized symmetrical output characteristics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with 2 inputs | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Enclosure | PDIP-14 | |
| Output current | 6.8 mA | |
| Product type | dual AND-OR inversion CMOS gate | |
| Assembly | THT | |
| Input voltage | 0.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85423390 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
