CD4076BE | Texas Instruments

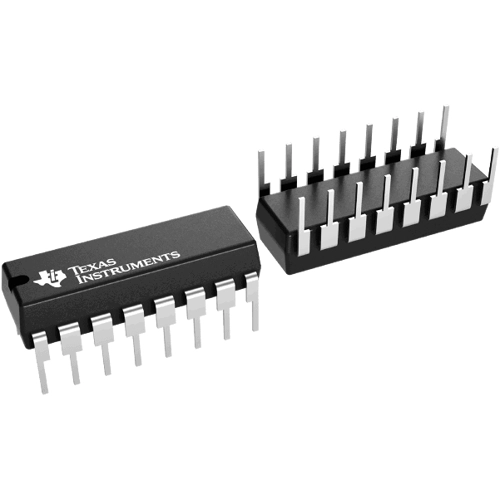

4-bit D-type register, with tri-state outputs, PDIP-16, Texas Instruments CD4076BE
Order No.: 60S6850
MPN:
CD4076BE
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 1 Week
D-Type Register, CD4076BE, Texas Instruments
The CD4076BE type is a four-bit register consisting of D-type flip-flops that feature three-state outputs. Data Disable inputs are provided to control the entry of data into the flip-flops. When both Data Disable inputs are low, data at the D inputs is loaded into its respective flip-flop on the next positive transition of the clock input. Output Disable inputs are also provided. The outputs are disabled independently of the clock by a high logic level at either Output Disable input and present a high impedance.
Features
- Operation of liquid crystals with CMOS circuits provides ultra-low-power displayThree-state outputss
- Input disabled without gating the clock
- Standardized, symmetrical output characteristics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 4-bit D-type register | |
| Version | with tri-state outputs | |
| Enclosure | PDIP-16 | |
| Assembly | THT | |
| Input voltage | 0.5 V | |
| Output current | 6.8 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85423390 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
