CD4072BE | Texas Instruments

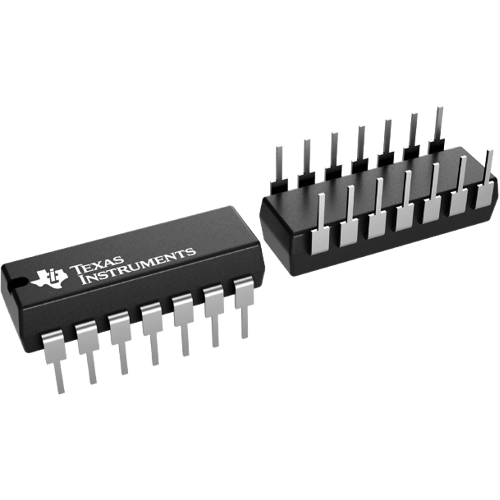

Dual 4-Inputs OR Gate, PDIP-14, Texas Instruments CD4072BE

Order No.: 60S6700
EAN: 4099879086075
MPN:
CD4072BE
Series: 4000
CD4072BE Texas Instruments Logic Devices
Image may differ
Unit Price (€ / pc.)
0.1833 € *
Available: 14 pcs.
Total Price:
0.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.1833 €

CMOS Dual 4-Input OR Gate, CD4072BE, Texas Instruments

The CD4072BE is a CMOS dual 4-input OR Gate provides the system designer with direct implementation of the positive-logic OR functions and supplements the existing family of CMOS gates. It meets all the requirements of JEDEC tentative standard no. 13B, "standard specifications for description of 'B' series CMOS devices".

Features

  • Medium-Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
  • Standardized, symmetrical output characteristics
  • 100% tested for quiescent current at 20 V
Technical specifications
Filter Property Value
Enclosure PDIP-14
Product type Dual 4-Inputs OR Gate
max. operating temperature 125 °C
Output current 3.4 mA
Assembly THT
min. operating temperature -55 °C
Input voltage 18 V
Logistics
Property Value
Original Packaging Bar with 25 pieces
Customs tariff number 85423390
MSL MSL 1
Country of origin MX
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
