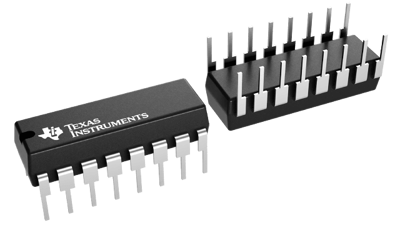

CD4063BE | Texas Instruments
0-bit magnitude comparator, PDIP-16, Texas Instruments CD4063BE
Order No.: 60S6300
MPN:
CD4063BE
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 1 Week
Magnitude Comparator, CD4063BE, Texas Instruments
The CD4063BE is a 4-bit magnitude comparator designed for use in computer and logic applications that require the comparison of two 4-bit words. This logic circuit determines whether one 4-bit word (Binary or BCD) is "less than", "equal to", or "greater than" a second 4-bit word. The CD4063BE has eight comparing inputs (A3, B3, through A0, B0), three outputs (A < B, A=B, A> B) and three cascading inputs (A < B, A=B, A> B) that permit systems designers to expand the comparator function to 8, 12, 16 - 4N bits.
Applications
- Servo motor controls
- Process controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 0-bit magnitude comparator | |
| Enclosure | PDIP-16 | |
| Assembly | THT | |
| Output current | 4.2 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MX |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
