CD4046BE | Texas Instruments

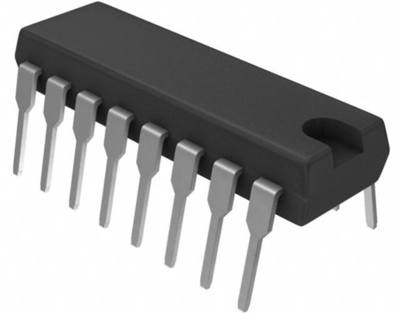

CMOS Micropower Phase-Locked Loop, PDIP-16, Texas Instruments CD4046BE
Unit Price (€ / pc.)
1.1543 € *
Available: 584 pcs.
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
25 pcs.
0.9282 €
100 pcs.
0.7735 €
250 pcs.
0.6664 €
1000 pcs.
0.5831 €
*incl. VAT plus shipping costs
Subject to prior sale
PLL circuit, CD4046BE, Texas Instruments
The CD4046BE is a CMOS micropower phase locked loop (PLL) in 16 pin DIP package. It consists of low power, linear voltage controlled oscillator (VCO) and two different phase comparators having common signal input amplifier and common comparator input. A 5.2V zener diode is provided for supply regulation if necessary.
Features
- Very low power consumption
- Source follower output of VCO control input (demodulation output)
- Standardized, symmetrical output characteristics
- Source follower output of VCO control input
Applications
- FM demodulator and modulator
- Frequency synthesus and multiplication
- Data synchronization
- Voltage to frequency conversion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-16 | |
| Assembly | THT | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Product type | CMOS Micropower Phase-Locked Loop | |
| Input voltage | 18 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MY |
| MSL | MSL 1 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
