CD4023BE | Texas Instruments

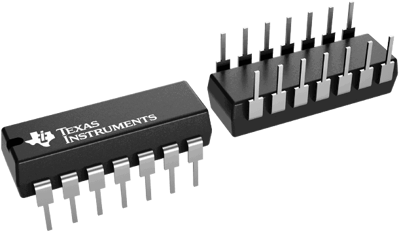

3-Input NAND Gate, PDIP-14, Texas Instruments CD4023BE
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.5474 €
25 pcs.
0.5117 €
100 pcs.
0.4760 €
250 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale
Logic gate, CD4023BE, Texas Instruments
The CD4023BE NAND gate provides the system designer with direct implementation of the NAND function and supplements the existing family of CMOS gates. All inputs and outputs are buffered. The CD4023BE is supplied in a 14-lead hermetic dual-in-line ceramic package (F3A suffix), a 14-lead dual-in-line plastic package (E suffix), a 14-lead small-outline package (M, MT, M96, and NSR suffixes), and a 14-lead thin shrink small-outline package (PWR suffix). The CD4023BE is also supplied in a 14-lead thin shrink small-outline package (PW suffix).
Features
- Buffered inputs and outputs
- Standardized, symmetrical output characteristics
- 100% tested for quiescent current at 20 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Number of channels | 4 | |
| max. operating temperature | 125 °C | |
| Input voltage | 18 V | |
| Product type | 3-Input NAND Gate | |
| min. operating temperature | -55 °C | |
| Output current | 3.4 mA | |
| Enclosure | PDIP-14 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
