CD4013BE | Texas Instruments

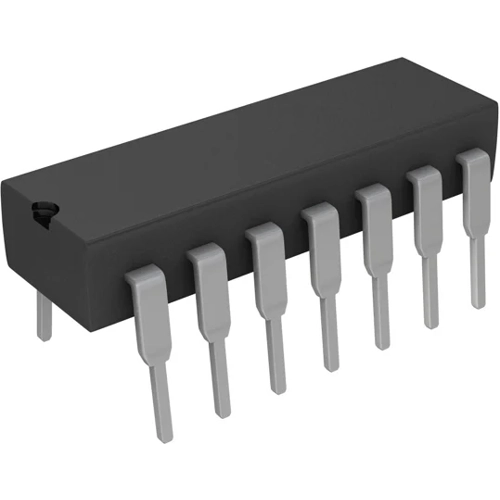

D flip-flop, PDIP-14, Texas Instruments CD4013BE
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.4403 € *
Available in 5 Days: 2,400 pcs. - if ordered today
D-Type Flip-Flop, CD4013BE, Texas Instruments
The CD4013BE device consists of an identical, independent data-type flip-flop. The flip-flop has an independent data, set, reset, and clock input and a Q and Q̅ output. The device can be used for a shift register application, and, by connecting the Q output to the data input, for a counter and toggle application. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line, respectively.
Features
- Asynchronous Set-Reset Capability
- Static Flip-Flop Operation
- Standardized Symmetrical Output Characteristics
Applications
- Power Delivery
- Grid Infrastructure
- Medical, Healthcare, and Fitness
- Body Electronics and Lighting
- Building Automation
- Telecom Infrastructure
- Test and Measurement
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | D flip-flop | |
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Number of channels | 2 | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
