CD4002BE | Texas Instruments

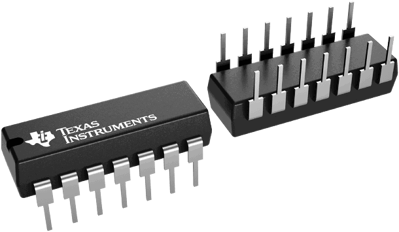

2-input NOR gate, PDIP-14, Texas Instruments CD4002BE
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 1 Week
Logic gate, CD4002BE, Texas Instruments
The CD4002BE NOR gate provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered. The CD4002BE type is supplied in a 14-lead hermetic dual-in-line ceramic package (F3A suffix), a 14-lead dual-in-line plastic package (E suffix), a 14-lead small-outline package (M, MT, M96, and NSR suffixes), and a 14-lead thin shrink small-outline package (PW and PWR suffixes).
Features
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
- 100% tested for maximum quiescent current at 20 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 2-input NOR gate | |
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Number of channels | 2 | |
| Input voltage | 18 V | |
| Output current | 6.8 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
