CD4001BM | Texas Instruments

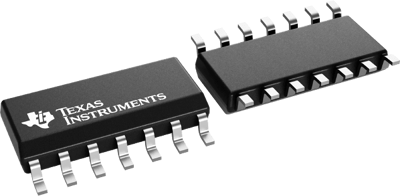

Quad 2 input NOR gate, SOIC-14, Texas Instruments CD4001BM
Unit Price (€ / pc.)
0.9520 € *
Standard delivery time from the manufacturer is: 1 Week
CMOS Quad 2-Input NOR Gate, CD4001BM, Texas Instruments
The CD4001BM is a quad 2-input NOR buffered B series Gate. This quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. The device have equal source and sink current capabilities and conform to standard B series output drive. The device also have buffered outputs which improve transfer characteristics by providing very high gain.
Features
- Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | quad 2 input NOR gate | |
| Enclosure | SOIC-14 | |
| Assembly | SMD | |
| Input voltage | 18 V | |
| Output current | 1.5 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
