AM26LS31CDR | Texas Instruments

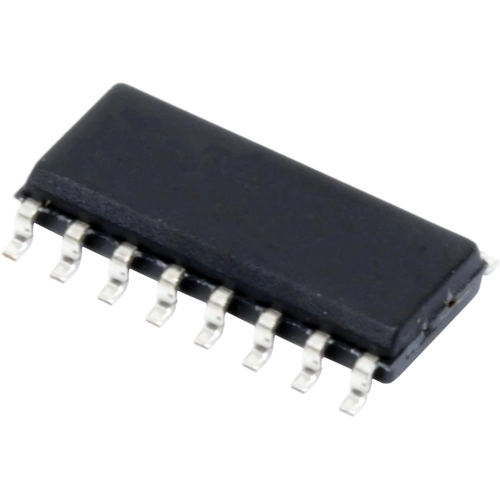

Quadruple Differential Line Driver, SOIC-16, Texas Instruments AM26LS31CDR
Unit Price (€ / pc.)
0.3451 € *
Available: 1,771 pcs.
Quadruple differential line driver, AM26LS31CDR, Texas Instruments
The AM26LS31CDR is a device that is a quadruple complementary-output line driver designed to meet the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. This product has a 3-state outputs for driving balanced lines such as twisted-pair or parallel-wire transmission lines, and they are in the highimpedance state in the power-off condition.
Features
- Complementary outputs
- High output impedance in power-off conditions
- Complementary output-enable inputs
- Operates from a single 5-V supply
- TTL-Compatible
Applications
- Field transmitters: pressure sensors and temperature sensors
- Military and avionics imaging
- Motor encoders
- Temperature sensors or controllers using modbus
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-16 | |
| max. operating temperature | 70 °C | |
| Assembly | SMD | |
| min. operating temperature | 0 °C | |
| Product type | Quadruple Differential Line Driver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 40 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
