74HCT4538 | Texas Instruments

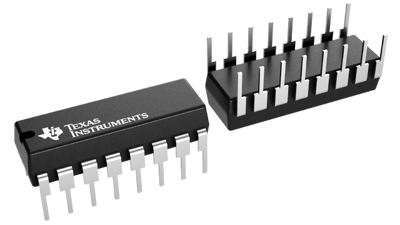

Dual retriggerable precision monostable multivibrators, with high-speed CMOS logic, PDIP-16, Texas Instruments 74HCT4538
Order No.: 62S9034
MPN:
74HCT4538
Unit Price (€ / pc.)
0.8568 € *
Standard delivery time from the manufacturer is: 1 Week
Monostable Multivibrator, 74HCT4538, Texas Instruments
The 74HCT4538 is a dual retriggerable/resettable monostable precision multivibrator for fixed-voltage timing applications. An external resistor (RX) and an external capacitor (CX) control the timing and the accuracy of the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q terminals. The propagation delay from trigger input-to-output transition and the propagation delay from reset input-to-output transition are independent of RX and CX.
Features
- Separate Resets
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with high-speed CMOS logic | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Enclosure | PDIP-16 | |
| Product type | dual retriggerable precision monostable multivibrators | |
| Number of channels | 2 | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
