TL317CLP | Texas Instruments

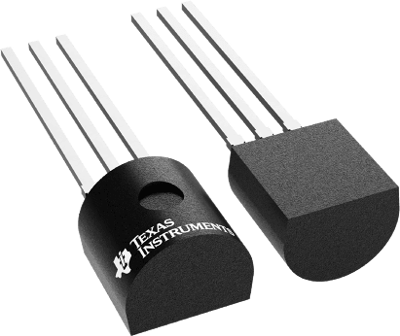

Voltage regulator, 1.2-32 VDC, 100 mA, positive, TO-92, TL317CLP
Order No.: 49S6500
EAN: 4099879100993
MPN:
TL317CLP
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 1 Week
Voltage regulator, TL317CLP, TI
The TL317CLP is an adjustable three-terminal positive voltage regulator capable of supplying 100 mA over an output-voltage range of 1.25 V to 32 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. This regulator offers full overload protection available only in integrated circuits. Included on the chip are current-limiting and thermal-overload protection. All overload-protection circuitry remains fully functional, even when ADJUSTMENT is disconnected.
Features
- Output current capability of 100 mA
- Input regulation typically 0.01% per input-voltage change
- Output regulation typically 0.5%
- Ripple rejection typically 80 dB
Applications
- Power supplies
- Portable devices
- Computing and servers
- HVAC: heating, ventilation, and air conditioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-92 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | 5-35 V | |
| Output voltage DC | 1.2-32 VDC | |
| Output current | 100 mA | |
| Polarity | positive | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85423390 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
