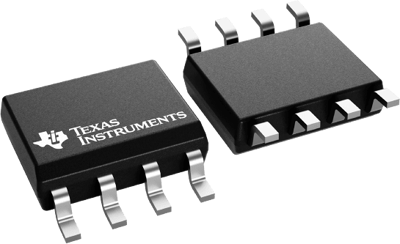

LM317LMX/NOPB | Texas Instruments
Voltage regulator, 1.2-37 VDC, 100 mA, positive, SOIC-8, LM317LMX/NOPB
Order No.: 41S2440
EAN: 4099879097941
MPN:
LM317LMX/NOPB
Unit Price (€ / pc.)
0.5236 € *
Available: 13,574 pcs.
Voltage regulator, LM317LMX/NOPB, TI
The LM317LMX/NOPB is an adjustable 3-terminal positive voltage regulator capable of supplying 100 mA over a 1.2 V to 37 V output range. The LM317LMX/NOPB is easy to use and requires only two external resistors to set the output voltage. Both line and load regulation are better than standard fixed regulators.
Features
- Line regulation typically 0.01% V
- Load regulation typically 0.1%
- Current limiting and thermal protection
- Eliminates the need to stock many voltages
Applications
- Automotive LED lighting
- Battery chargers
- Post regulator for switching supplies
- Constant-current regulators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOIC-8 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | 4.2-40 V | |
| Output voltage DC | 1.2-37 VDC | |
| Output current | 100 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
