LM1117T-5.0/NOPB | Texas Instruments

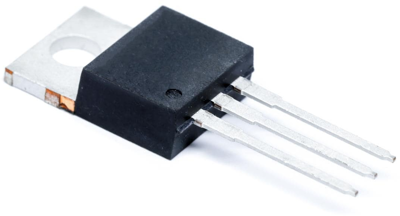

Voltage regulator, 5 VDC, 800 mA, positive, TO-220, LM1117T-5.0/NOPB
Order No.: 41S5754
EAN: 4099879098092
MPN:
LM1117T-5.0/NOPB
Unit Price (€ / pc.)
1.1305 € *
Standard delivery time from the manufacturer is: 12 Weeks
Voltage regulator, LM1117T-5.0, TI
The LM1117T-5 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%.
Features
- Current limiting and thermal protection
- Line regulation 0.2% (Maximum)
- Load regulation 0.4% (Maximum)
Applications
- Post regulator for switching DC–DC converter
- High efficiency linear regulators
- Battery chargers
- Portable instruments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | 0 °C | |
| Number of Regulators | 1 | |
| Polarity | positive | |
| max. operating temperature | 125 °C | |
| Version | fixed | |
| Output voltage DC | 5 VDC | |
| Assembly | THT | |
| Output current | 800 mA | |
| Enclosure | TO-220 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | GB |
| Original Packaging | Bar with 45 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
