SN75472P | Texas Instruments

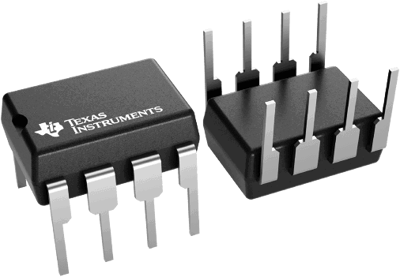

Dual peripheral driver, PDIP-8, Texas Instruments SN75472P

Order No.: 46S4000
MPN:
SN75472P
Series: 75
SN75472P Texas Instruments Gate Driver ICs
Image may differ
Unit Price (€ / pc.)
0.7973 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7140 €
25 pcs.
0.6664 €
100 pcs.
0.6188 €
250 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale

Dual peripheral driver, SN75472P, Texas Instruments

The SN75472P is a dual peripheral AND, NAND, OR, or NOR driver, respectively (assuming positive logic), with the output of the logic gate internally connected to the base of the npn output transistor.

Features

  • High-Voltage Outputs
  • Medium-Speed Switching
  • Circuit Flexibility for Varied Applications and Choice of Logic Function
  • TTL-Compatible Diode-Clamped Inputs
  • Standard Supply Voltages
Technical specifications
Filter Property Value
Input voltage 5.5 V
Enclosure PDIP-8
Assembly THT
Output voltage DC 4.75-5.25 V
Version dual peripheral driver
Logistics
Property Value
MSL MSL 1
Original Packaging Bar with 50 pieces
Country of origin MX
Customs tariff number 85423390
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
