SN75176BD | Texas Instruments

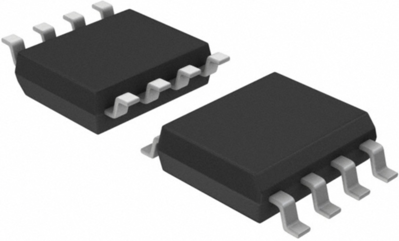

Differential bus transceiver, SOIC-8, Texas Instruments SN75176BD

Order No.: 46S1005
EAN: 4099879102904
MPN:
SN75176BD
Series: 75
SN75176BD Texas Instruments Gate Driver ICs
Image may differ
Unit Price (€ / pc.)
1.8445 € *
Available: 4,979 pcs.
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.4875 €
100 pcs.
1.2495 €
250 pcs.
1.0829 €
1000 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale

Differential bus transceiver, SN75176BD, Texas Instruments

The SN75176BD differential bus transceiver is an integrated circuit, designed for bidirectional data communication on multipoint bus transmission lines. This device is designed for balanced transmission lines and combines a 3 state differential line driver and a differential input line receiver, both of which operate from a single 5V power supply. The driver and receiver have active high and active low enables, respectively, that can be connected together externally to function as a direction control.

Features

  • Bidirectional transceivers
  • 3-State driver and receiver outputs
  • Individual driver and receiver enables
  • Thermal shutdown protection
  • Driver positive and negative current limiting

Applications

  • Chemical and gas sensors
  • Digital signage
  • HMI (human machine interfaces)
  • TETRA base stations
  • Wireless repeaters
Technical specifications
Assembly SMD
Version transceiver
Number of channels 1
Enclosure SOIC-8
Output voltage DC 4.75-5.25 V
Logistics
MSL MSL 1
Original Packaging Reel with 2,500 pieces
Country of origin MY
Customs tariff number 85423390
Compliance
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
