SN75150D | Texas Instruments

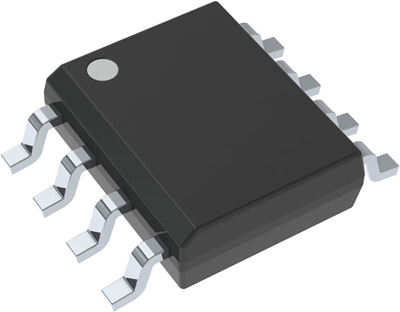

Dual Line Driver, SOIC-8, Texas Instruments SN75150D
Unit Price (€ / pc.)
1.4042 € *
Standard delivery time from the manufacturer is: 2 Weeks
Dual Line Driver, SN75150D, Texas Instruments
The SN75150D is a monolithic dual line driver designed to satisfy the requirements of the standard interface between data-terminal equipment and data-communication equipment as defined by TIA/EIA-232-F. A rate of 20 kbits/s can be transmitted with a full 2500-pF load. Other applications are in data-transmission systems using relatively short single lines, in level translators, and for driving MOS devices. The logic input is compatible with most TTL families. Operation is from 12-V and -12-V power supplies.
Features
- Inputs Compatible With Most TTL Families
- Common Strobe Input
- Inverting Output
- Slew Rate Can Be Controlled With an External Capacitor at the Output
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 15 V | |
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Output voltage DC | 10.8-13.2 V | |
| Version | Dual Line Driver |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Bar with 75 pieces |
| Country of origin | QU |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
