PTN04050CAD | Texas Instruments
PTN04050CAD
Order No.: 58S1774
MPN:
PTN04050CAD
Unit Price (€ / pc.)
24.0499 € *
Standard delivery time from the manufacturer is: 1 Week

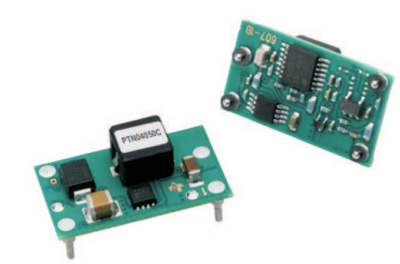

Boost Converter, PTN04050CAD, Texas Instruments
The PTN04050CAD is a 4-pin boost-voltage regulator product. The PTN04050CAD is smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics. The case-less, double-sided package, also exhibits improved thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance. Operating over a 2.95V to 5.5V input range, the PTN04050CAD provides high-efficiency, step-up voltage conversion for loads of up to 12W. The output voltage is set using a single external resistor. The PTN04050CAD may be set to any value within the range, 5V to 15V.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DIP module | |
| Assembly | THT | |
| Input voltage AC | 2.95-5.5 V | |
| Output voltage DC | 5-15 V | |
| Output current | 2.4 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Input voltage | 5.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
