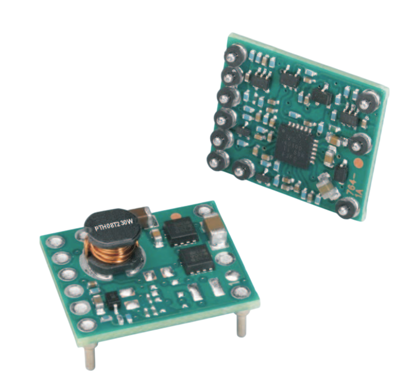

This regulator represents the 2nd generation of power modules which include a reduced footprint and improved features. The PTH08T261WAZ is optimized to be used in applications requiring all ceramic capacitors. Operating from an input voltage range of 4.5V to 14V, the PTH08T261WAZ requires a single resistor to set the output voltage to any value over the range, 0.69V to 5.5V. The wide input voltage range makes the PTH08T261WAZ particularly suitable for advanced computing and server applications that use a loosely regulated 8-V to 12-V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5-V, 8-V, or 12-V intermediate bus architectures.
Features
- Output Overcurrent Protection (Nonlatching, Auto-Reset)
- Prebias Startup
- On/Off Inhibit
- Differential Output Voltage Remote Sense
- Adjustable Undervoltage Lockout
Applications
- Complex Multi-Voltage Systems
- Microprocessors
- Bus Drivers
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Output current | 3 A | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Output voltage DC | 0.69-5.5 V | |
| Input voltage AC | 4.5-14 V | |
| Input voltage | 14 V |
| Property | Value |
|---|---|
| Country of origin | MX |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
