LM27313XMF/NOPB | Texas Instruments

Boost converter, LM27313XMF/NOPB, Texas Instruments

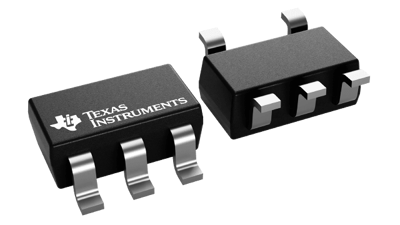

The LM27313XMF/NOPB switching regulator is a current-mode boost converter with a fixed operating frequency of 1.6 MHz. The use of the SOT-23 package, made possible by the minimal losses of the 800-mA switch, and the small inductors and capacitors result in extremely high power density. The 30-V internal switch makes these solutions perfect for boosting to voltages of 5 V to 28 V. This device has a logic-level shutdown pin that can be used to reduce quiescent current and extend battery life. Protection is provided through cycle-by-cycle current limiting and thermal shutdown. Internal compensation simplifies design and reduces component count.

Features

• 1.6-MHz Switching Frequency
• Uses Tiny Capacitors and Inductors
• Cycle-by-Cycle Current Limiting
• Internally Compensated

Applications

• White LED Current Source
• PDAs and Palm-Top Computers
• Digital Cameras
• Portable Phones, Games, and Media Players
• GPS Devices
