LM2591HVSX-ADJ/NOPB | Texas Instruments
Voltage regulators, 5 V, 1.2 V, 57 V

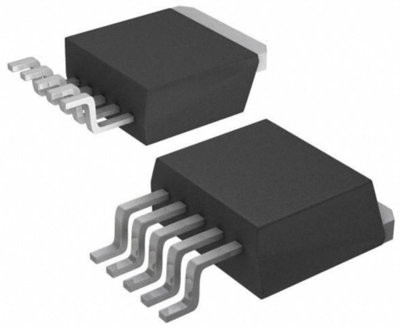

Step-Down Voltage Regulator, LM2591HVSX-ADJ/NOPB, Texas Instruments
The LM2591HVSX-ADJ/NOPB regulator is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load with excellent line and load regulation. Requiring a minimum number of external components, this regulator is simple to use and includes internal frequency compensation, improved line and load specifications, and a fixed-frequency oscillator. Requiring a minimum number of external components, this regulator is simple to use and includes internal frequency compensation, improved line and load specifications, and a fixed-frequency oscillator. The LM2591HVSX-ADJ/NOPB operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what would be needed with a lower frequency switching regulator.
Features
- ON and OFF Control
- Low Power Standby Mode, IQ Typically 90 μA
- High Efficiency
- Thermal Shutdown and Current-Limit Protection
Applications
- Simple High-Efficiency Step-Down (Buck) Regulators
- Efficient preregulator for linear regulators
- On-Card Switching Regulators
- Positive-to-negative converters
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |

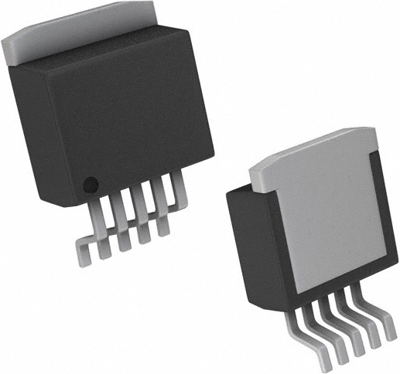

| Enclosure | TO-263-6 | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Output voltage DC | 1.2-57 V | |
| Output current | 1 A | |
| Input voltage AC | 4.5-60 V |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85423390 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
