LM2577T-ADJ/NOPB | Texas Instruments

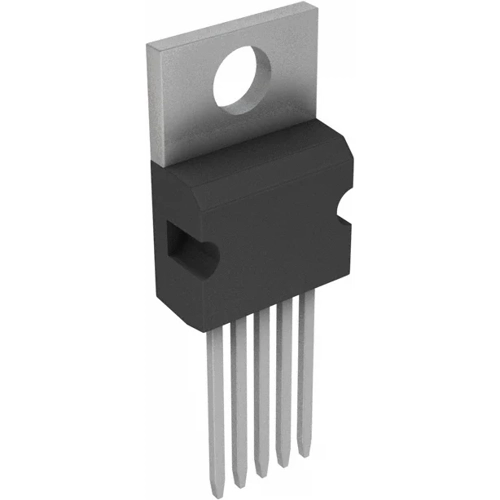

IC REG BST FLYBCK ADJ 3A TO220-5LM2577T-ADJ/NOPB
Order No.: 70S1188
MPN:
LM2577T-ADJ/NOPB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.2594 € *
Standard delivery time from the manufacturer is: 1 Week
Step-Up Voltage Regulator, LM2577T-ADJ/NOPB, Texas Instruments
The LM2577T-ADJ/NOPB is a monolithic integrated circuit that provides all of the power and control functions for a step-up (boost), flyback, or forward converter switching regulator. Requiring a minimum number of external components, this regulator is cost-effective and simple to use. Listed in this data sheet is a standard inductor or flyback transformer designed to work with this switching regulator. Included on the chip is a 3.0A NPN switch and its associated protection circuitry, consisting of current and thermal limiting, and undervoltage lockout.
Features
- Requires Few External Components
- Current-mode Operation for Improved Transient Response, Line Regulation, and Current Limit
- 52 kHz Internal Oscillator
- Soft-start Function Reduces In-rush Current During Start-up
- Output Switch Protected by Current Limit, Under-voltage Lockout, and Thermal Shutdown
Applications
- Simple Boost Regulator
- Flyback and Forward Regulators
- Multiple-output Regulator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-220 | |
| Assembly | THT | |
| Input voltage AC | 3.5-40 V | |
| Output voltage DC | 11.6-12.4 V | |
| Output current | 3 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Input voltage | 40 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
