LM2576HVSX-ADJ/NOPB | Texas Instruments
Voltage regulators, 5 V, 1.23 V, 57 V, LM2576HVSX-ADJ/NOPB
Order No.: 41S5413
EAN: 4099879090188
MPN:
LM2576HVSX-ADJ/NOPB
Unit Price (€ / pc.)
6.8901 € *
Standard delivery time from the manufacturer is: 6 Weeks

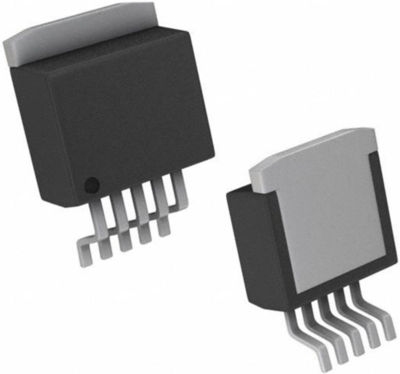

Voltage Regulator, LM2576HVSX-ADJ/NOPB, Texas Instruments
The LM2576HVSX-ADJ/NOPB regulator is a monolithic integrated circuit that provides all the active functions for a step-down switching regulator, capable of driving 3 A load with excellent line and load regulation. Requires a minimum number of external components, is simple to use and includes fault protection and a fixed-frequency oscillator.
Features
- TTL Shutdown Capability
- Low Power Standby Mode
- High Efficiency
Applications
- Motor Drives
- Merchant network and server PSU
- Appliances
- Test and measurement equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-263 | |
| Assembly | SMD | |
| Input voltage AC | 40-60 V | |
| Output voltage DC | 1.23-57 V | |
| Output current | 3 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Input voltage | 60 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 500 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
