DCP010505BP-U | Texas Instruments
DCP010505BP-U
Order No.: 56S9073
MPN:
DCP010505BP-U
Unit Price (€ / pc.)
17.8024 € *
Available in 5 Days: 101 pcs. - if ordered today
Total Price:
17.80 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8024 €
10 pcs.
17.1598 €
25 pcs.
16.5291 €
100 pcs.
15.8865 €
250 pcs.
15.2558 €
*incl. VAT plus shipping costs
Subject to prior sale

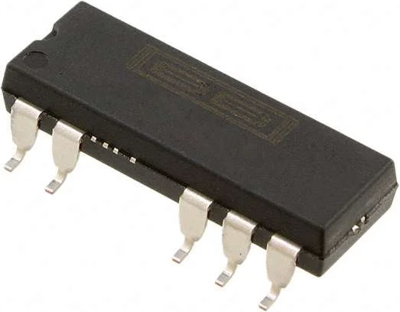

Miniature DC/DC Converter, DCP010505BP-U, Texas Instruments
The DCP010505BP-U is a 1-W, isolated, unregulated DC/DC converter module. Requiring a minimum of external components and including on-chip device protection, the DCP010505BP-U of device provide extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the DCP010505BP-U suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.
Features
- UL1950 recognized component
- Device-to-device synchronization
- Thermal protection
- Short-circuit protection
- High efficiency
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 4.75-5.25 V | |
| max. operating temperature | 100 °C | |
| Input voltage AC | 4.5-5.5 V | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Output current | 200 mA | |
| Enclosure | SOP-7 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
