TLV5619CDW | Texas Instruments

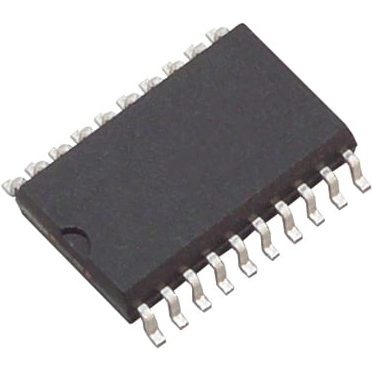

IC DAC 12BIT V-OUT 20SOICTLV5619CDW
Order No.: 70S1762
MPN:
TLV5619CDW
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.3760 € *
Available in 5 Days: 30 pcs. - if ordered today
Digital-to-analog Converters, TLV5619CDW, Texas Instruments
The TLV5619CDW is a 12-bit voltage-output digital-to-analog converter (DAC) with a microprocessor- and TMS320-compatible parallel interface. The 12 data bits are double-buffered, allowing the output to be updated asynchronously via the LDAC\ pin. During normal operation, it dissipates 8 mW at a 5-V supply and 4.3 mW at a 3-V supply, while power consumption can be reduced to 50 nW in power-down mode.
Features
- Internal Power On Reset
- Reference Input Buffers
- Voltage Output
- Monotonic Over Temperature
- Asynchronous Update
Applications
- Battery Powered Test Instruments
- Digital Offset and Gain Adjustment
- Battery Operated/Remote Industrial Controls
- Machine and Motion Control Devices
- Cordless and Wireless Telephones
- Speech Synthesis
- Communication Modulators
- Arbitrary Waveform Generation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-20 | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Version | 12 bit DAC | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | TW |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
