Unit Price (€ / pc.)
32.2728 € *
Standard delivery time from the manufacturer is: 2 Weeks

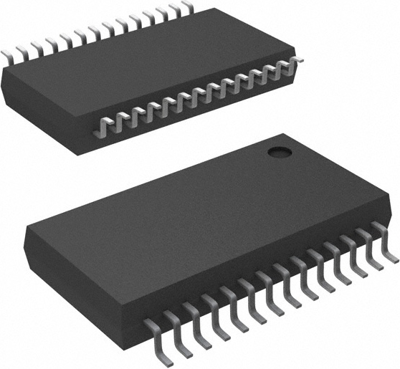

Multiplying Digital to Analog Converter, DAC8814ICDBT, Texas Instruments
The DAC8814ICDBT is a quad, 16-bit, current-output digital-to-analog converter (DAC) designed to operate from a single +2.7-V to 5.0-V supply. The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier.
Features
- Four Separate 4Q Multiplying Reference Inputs
- Double Buffered Registers Enable
- Simultaneous Multichannel Change
- Internal Power-On Reset
- Industry-Standard Pin Configuration
Applications
- Automatic Test Equipment
- Instrumentation
- Digitally-Controlled Calibration
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Enclosure | SSOP-28 | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Version | digital-to-analogue converter | |
| Number of channels | 4 |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
