DAC8551IADGKT | Texas Instruments

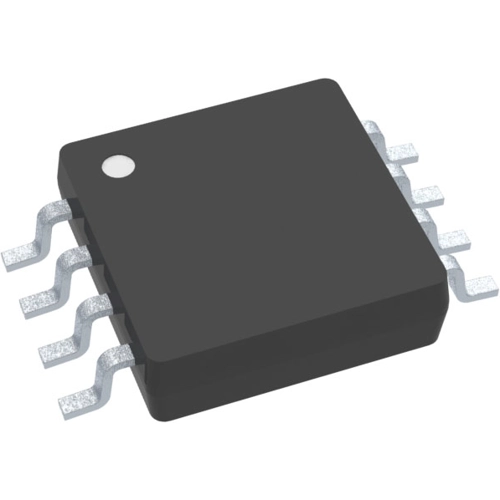

Digital-To-Analog Converter, DAC8551IADGKT, Texas Instruments

The DAC8551 is a small, low-power, voltage output, 16-bit digital-to-analog converter (DAC). It is monotonic, provides good linearity, and minimizes undesired code-to-code transient voltage. The DAC8551 uses a versatile 3-wire serial interface that operates at a clock rate to 30 MHz and is compatible with a standard SPI™, QSPI™, Microwire™, and digital signal processor (DSP) interface. The DAC8551 requires an external reference voltage to set its output range. The DAC8551 incorporates a power-on-reset circuit that ensures the DAC output powers up at 0 V and remains there until a valid write takes place to the device. The DAC8551 contains a power-down feature, accessed over the serial interface, that reduces the current consumption of the device to 200 nA at 5 V. The low-power consumption of this device in normal operation makes it ideally suited for portable, battery-operated equipment. The power consumption is 0.38 mW at 2.7 V, reducing to less than 1 μW in power-down mode.

Features

• Power-On Reset to Zero
• Low-Power Serial Interface with Schmitt-Triggered Inputs
• On-Chip Output Buffer Amplifier with Rail-to-Rail Operation
• Power-Down Capability
• Binary Input
• SYNC Interrupt Facility

Applications

• Process Control
• Data Acquisition Systems
• Closed-Loop Servo-Control
• PC Peripherals
• Portable Instrumentation
• Programmable Attenuation
