DAC7625U | Texas Instruments

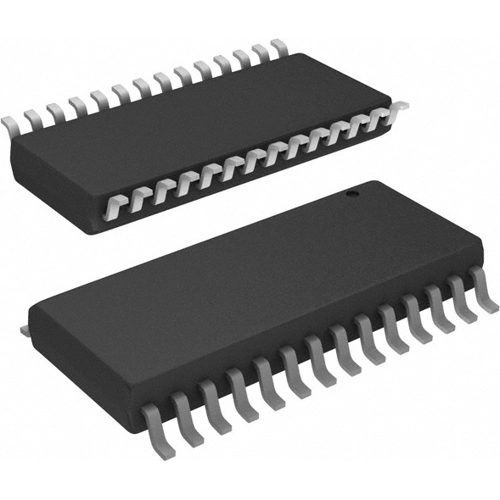

IC DAC 12BIT V-OUT 28SOICDAC7625U
NCNR (non cancelable / non returnable)
Digital-To-Analog Converter, DAC7625U, Texas Instruments
The DAC7625U is a 12-bit quad voltage output digital-to-analog converter with guaranteed 12-bit monotonic performance over the specified temperature range. It accepts 12-bit parallel input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a readback mode of the internal input register. An asynchronous reset clears the register to a mid-scale code of 800H (DAC7625U) or to a zero-scale of 000H (DAC7625U). The DAC7625U can operate from a single +5V supply or from +5V and -5V supplies. Low power and small size per DAC make the DAC7625U ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control.
Features
- Data readback
- Double-buffered data inputs
Applications
- Process control
- Ate pin electronics
- Closed-loop servo-control
- Motor control
- Data acquisition systems
- Dac-per-pin programmers
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-28 | |
| Assembly | SMD | |
| Number of channels | 4 | |
| Version | D/A converter | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
| Property | Value |
|---|---|
| Customs tariff number | 85423290 |
| MSL | MSL 3 |
| Country of origin | TW |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
