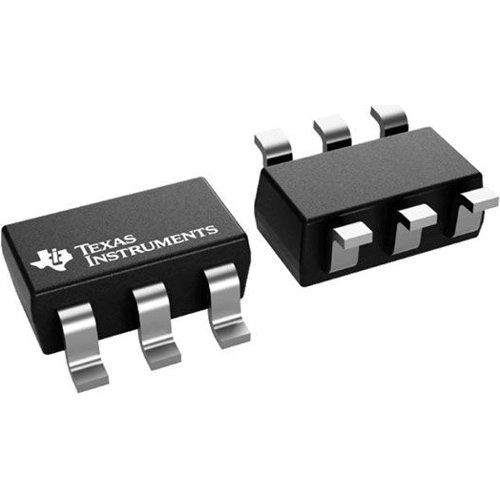

DAC5571IDBVT | Texas Instruments

Logic Octal Inverting Bus Transceiver, DAC5571IDBVT, Texas Instruments

The DAC5571IDBVT is a low-power, single-channel, 8-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC5571IDBVT utilizes an I2C-compatible, two-wire serial interface that operates at clock rates up to 3.4 Mbps with address support of up to two DAC5571IDBVT on the same data bus. The output voltage range of the DAC is 0 V to VDD. The DAC5571 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write to the device takes place. The DAC5571IDBVT contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 50 nA at 5 V. The low-power consumption of this part in normal operation makes it ideally suited for portable battery operated equipment.

Features

• On-Chip Output Buffer Amplifier, Rail-to-Rail Operation
• Double-Buffered Input Register

Applications

• Process Control
• Data Acquistion Systems
• Closed-Loop Servo Control
• PC Peripherals
• Portable Instrumentation
