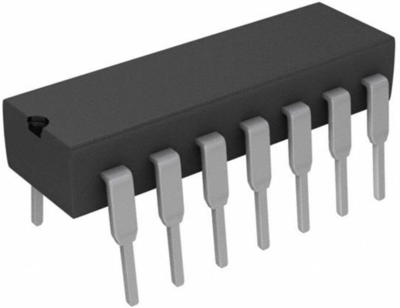

CD4016BE | Texas Instruments
Switches, PDIP14, THT, CMOS logic chips
Order No.: 60S2550
MPN:
CD4016BE
Unit Price (€ / pc.)
0.4403 € *
Available in 5 Days: 25 pcs. - if ordered today
Bilateral switch, CD4016BE, Texas Instruments
The CD4016BE Bilateral switch is intended for the transmission or multiplexing of analog or digital signals. Each of four independent bilateral switches has a single control signal input which simultaneously biases both the P and N device in a given switch on or off .
Features
- High degree pf linearity
- Extremely high control input impedance
- Low crosstalk between switches
- Reduces output signal trasients
Applications
- Modulator
- Demodulator
- Commutating switch
- Digital switching/multiplexing
Technical specifications
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Number of channels | 4 | |
| Input voltage | 18 V | |
| Version | digital-to-analogue converter | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Original Packaging | Bar with 25 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Country of origin | MY |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
