ULN2002AN | Texas Instruments

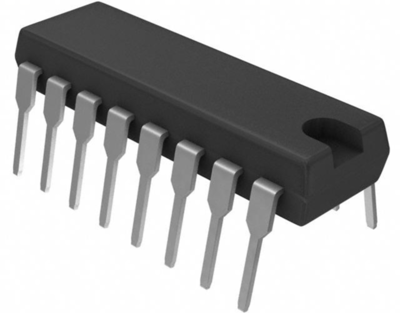

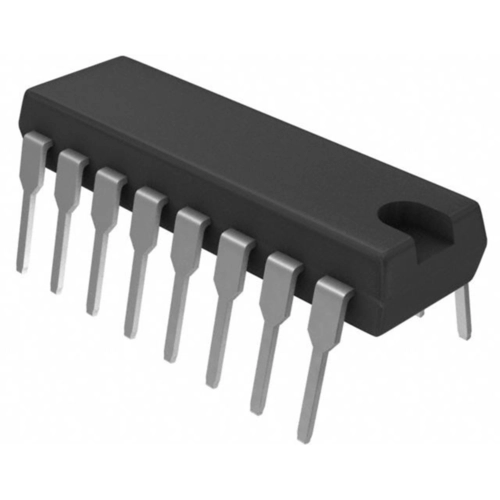

Bipolar junction transistor, NPN, 50 V, THT, DIP-16, ULN2002AN
Unit Price (€ / pc.)
0.6426 € *
Standard delivery time from the manufacturer is: 12 Weeks
Darlington transistor, ULN2002AN, Texas Instruments
The ULN2002AN device is high-voltage, high-current Darlington transistor array. It consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.
Features
- Output clamp diodes
- Inputs compatible with various types of logic
Applications
- Relay drivers
- Lamp drivers
- Display drivers
- Stepper and DC brushed motor drivers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| Rated current | 500 mA | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| max.voltage between collector and emitter Vceo | 50 V | |
| Saturation voltage | 1.6 V | |
| Version | NPN | |
| Enclosure | DIP-16 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 25 pieces |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
