SN75189AN | Texas Instruments

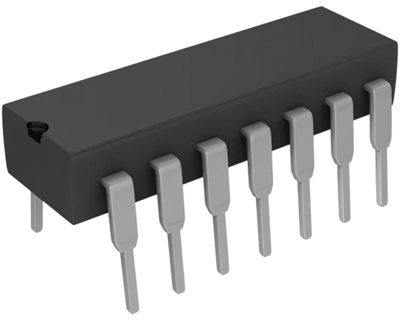

Logic chip, Standard TTL, PDIP14, THT, Standard TTL
Order No.: 46S1250
MPN:
SN75189AN
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 1 Week
Quadruple Line Receiver, SN75189AN, Texas Instruments
This device is monolithic low-power Schottky quadruple line receiver designed to satisfy the requirements of the standard interface between data-terminal equipment and data-communication equipment as defined by TIA/EIA-232-F. A separate response-control (CONT) terminal is provided for each receiver. A resistor or a resistor and bias-voltage source can be connected between this terminal and ground to shift the input threshold level. An external capacitor can be connected between this terminal and ground to provide input noise filtering.
Features
- Operate From Single 5-V Supply
- Input Threshold Shifting
- Input Noise Filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receiver | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C | |
| Enclosure | PDIP-14 | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85423390 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
