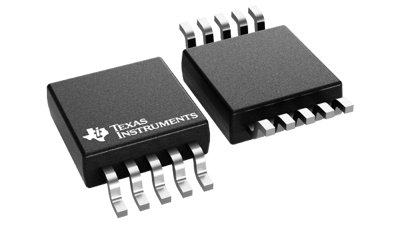

SN65HVD3086EDGSR | Texas Instruments

Driver/Receiver, SN65HVD3086EDGSR, Texas Instruments

The device is a balanced driver and receiver designed for a full-duplex RS-485 or RS-422 data bus network. Powered by a 5-V supply, it is fully compliant with the TIA/EIA-485A standard. With controlled bus output transition times, the device is suitable for signaling rates from 200 kbps to 20 Mbps. The device is designed to operate with a low supply current, less than 1 mA (typical), exclusive of the load. When in the inactive shutdown mode, the supply current drops to a few nanoamps, making this device ideal for power-sensitive applications. The wide common-mode range and high ESD protection level of the device make it suitable for demanding applications such as motion controllers, electrical inverters, industrial networks, and cabled chassis interconnects where noise tolerance is essential.

Features

• Failsafe receiver
• Power-up, power-down glitch-free operation

Applications

• Motion controllers
• Point-of-sale (POS) terminals
• Rack-to-rack communications
• Industrial networks
• Power inverters
• Battery-powered applications
• Building automation
