MAX3222EIPWR | Texas Instruments
MAX3222EIPWR
Order No.: 57S6989
MPN:
MAX3222EIPWR
Unit Price (€ / pc.)
1.6184 € *
Standard delivery time from the manufacturer is: 1 Week

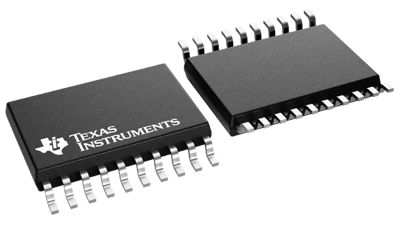

Driver/Receiver, MAX3222EIPWR, Texas Instruments
The MAX3222EIPWR consists of one line driver, one line receiver, and a single charge-pump circuit with ±15kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and two small external capacitors allow operation from a single 3V to 5.5V supply. The device operates at a typical data signaling rate up to 500kbit/s and a maximum of 30V/μs driver output slew rate.
Features
- Two drivers and two receivers
Applications
- Industrial PCs
- Wired networking
- Data center and networking equipment
- Notebooks
- Hand-held equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transceiver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Enclosure | TSSOP-20 | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
