LM81BIMTX-3/NOPB | Texas Instruments
LM81BIMTX-3/NOPB
Order No.: 57S4554
MPN:
LM81BIMTX-3/NOPB
Unit Price (€ / pc.)
5.1051 € *
Standard delivery time from the manufacturer is: 1 Week

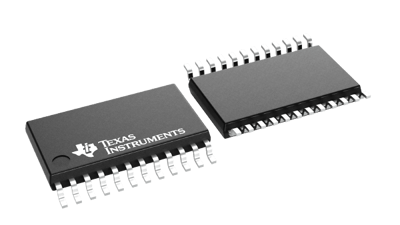

Hardware Monitor, LM81BIMTX-3/NOPB, Texas Instruments
The LM81BIMTX-3/NOPB is a highly integrated data acquisition system for hardware monitoring of servers, Personal Computers, or virtually any microprocessor-based system. In a PC, the LM81 can be used to monitor power supply voltages, temperatures, and fan speeds. Actual values for these inputs can be read at any time. Programmable WATCHDOG limits in the LM81 activate a fully programmable and maskable interrupt system with two outputs (INT and T_CRIT_).
Features
- Temperature Sensing
- 2 Fan Speed Monitoring Inputs
- Chassis Intrusion Detector Input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | serial interface ACPI-compatible microprocessor system hardware monitor | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Enclosure | TSSOP-24 | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
