PCM1804DB | Texas Instruments

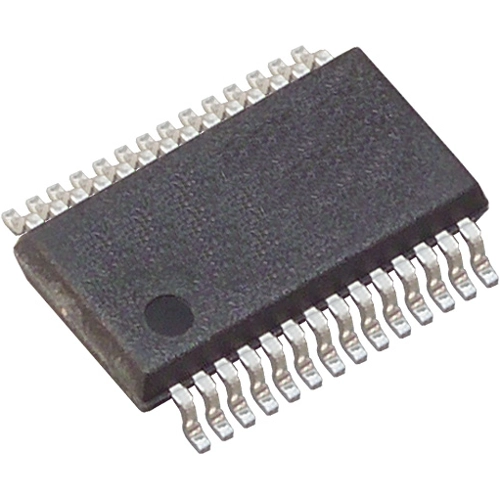

Audio ADC, 2 channels, SSOP-28, PCM1804DB
Order No.: 70S1608
MPN:
PCM1804DB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.831 € *
Available in 5 Days: 42 pcs. - if ordered today
Stereo A/D Converter, PCM1804DB, Texas Instruments
The PCM1804DB is a high-performance, single-chip stereo A/D converter with fully differential analog voltage input. It uses a precision delta-sigma modulator and includes a linear-phase anti-alias digital filter and a high-pass filter (HPF) that removes DC offset from the input signal. The PCM1804DB is suitable for a wide variety of mid- to high-grade consumer and professional applications, supporting 5-V analog supply and 3.3-V digital power-supply operation. It can achieve both PCM audio and DSD format thanks to its precision delta-sigma modulator. The PCM1804DB is fabricated using an advanced CMOS process and is available in a compact 28-pin SSOP package.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SSOP-28 | |
| Assembly | SMD | |
| Number of channels | 2 | |
| Version | audio ADC | |
| Number of pins | 28 | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | JP |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
