ADS830E | Texas Instruments

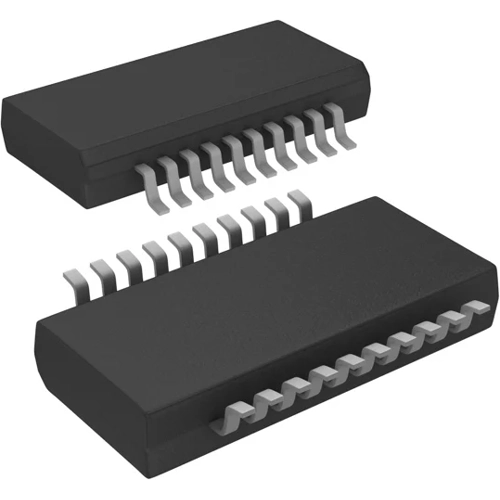

Pipeline ADC, 1 channel, SSOP-20, ADS830E
NCNR (non cancelable / non returnable)
Analog-to-digital Converter, ADS830E, Texas Instruments
The ADS830E is a pipeline, CMOS Analog-to-Digital (A/D) converter that operates from a single +5V power supply. This converter provides excellent performance with a single-ended input and can be operated with a differential input for added spurious performance. This high performance converter includes an 8-bit quantizer, high bandwidth track/hold, and a high accuracy internal reference. It also allows for the user to disable the internal reference and utilize external references. This external reference option provides excellent gain and offset matching when used in multi-channel applications or in applications where DC full scale range adjustment is required. The ADS830E employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for medical imaging, communications, video, and test instrumentation.
Features
- Internal/ external reference option
Applications
- Medical imaging
- Video digitizing
- Communications
- Disk-drive control
| Filter | Property | Value |
|---|---|---|
| Enclosure | SSOP-20 | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Version | pipeline ADC | |
| Number of pins | 20 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 2 |
| Country of origin | MY |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
