LM2574M-5.0 | Texas Instruments

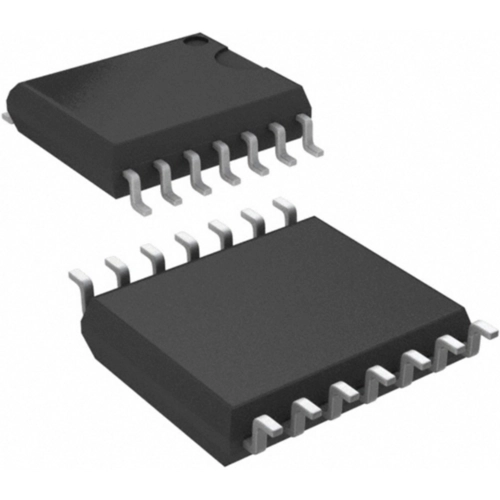

Voltage regulators, 1.23-37 V, 500 mA, SOIC-14, Texas Instruments LM2574M-5.0
Order No.: 41S5758
EAN: 4099879090256
MPN:
LM2574M-5.0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.9516 € *
Available: 530 pcs.
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
25 pcs.
1.9040 €
100 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale
Voltage Regulator, LM2574M-5.0, Texas Instruments
The LM2574M-5.0 is a monolithic integrated circuit that provides all the active functions for a step-down switching regulator, capable of driving a 0.5 A load with excellent line and load regulation. It requires a minimum number of external components, is simple to use, and includes an internal frequency compensation and a fixed frequency oscillator.
Features
- TTL Shutdown Capability
- Low Power Standby Mode
- High Efficiency
- Thermal Shutdown and Current-Limit Protection
Applications
- Efficient Preregulator for Linear Regulators
- On-Card Switching Regulators
- Positive-to-Negative Converter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 40 V | |
| Enclosure | SOIC-14 | |
| Output voltage DC | 1.23-37 V | |
| Assembly | SMD | |
| max. operating temperature | 125 °C | |
| Output current | 500 mA | |
| Input voltage AC | 40-60 V | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| MSL | MSL 2A |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
