0563 0922 | Testo
Testo temperature measuring device, 0563 0922, testo 922
Order No.: 22K8629
EAN: 4029547025761
MPN:
0563 0922
testo 922
Unit Price (€ / pc.)
185.0331 € *
Standard delivery time from the manufacturer is: On Request

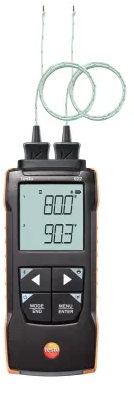

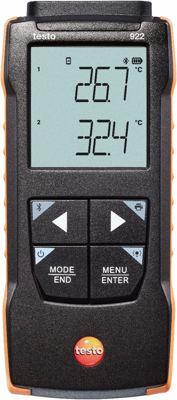

Differential temperature measuring instrument, 0563 0922, Testo
With the compact 2-channel temperature measuring instrument you have the versatile solution for simple, fast and precise measurement of the differential temperature, e.g. when checking the supply/return temperature on heating circuit manifolds. The testo Smart App supports you with useful functions suchz as configuration, display and storage as well as documentation of the measured values directly in the App.
Features

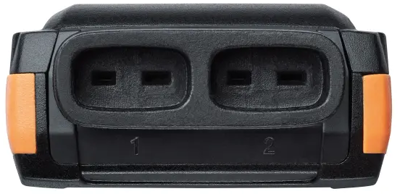

- Easy, fast and precise differential temperature measurement with dual thermocouple Type K probes
- Fast in-app configuration, graph history, second screen and measurement data memory in the Smart App
- Wide range of applications due to large measuring range from -50 °C to 1000 °C
- Large probe selection optional and compatible with commercially available TC Type K sensors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 1 °C | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -20 °C | |
| Product type | temperature measuring device | |
| Accuracy | ±0.5 °C + 0.3 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90251900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
