0560 8725 | Testo
Thermal imaging camera, 42° x 30°, 320 x 240 Pixel, 9, 0,5 m, 0560 8725
Order No.: 22K8614
EAN: 4029547024801
MPN:
0560 8725
testo 872s
Unit Price (€ / pc.)
3,211.81 € *
Standard delivery time from the manufacturer is: On Request

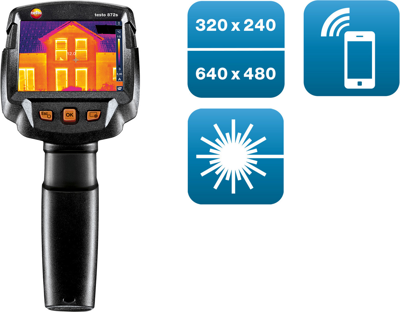

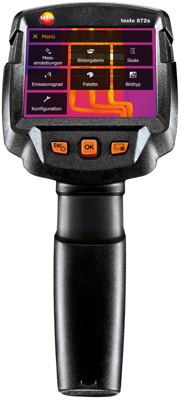

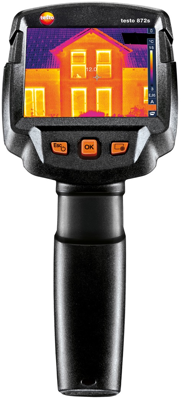

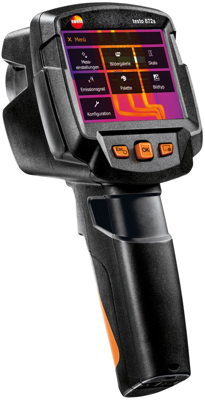

Thermal imager, 0560 8725, Testo
The 0560 8725 is a thermal imager that gives you the best possible support for your work in professional industrial and building thermography. This product is smart and networked: the free testo thermography App enables you to write and send reports on site, as well as saving them online, and lots more and has the best thermal image quality in its class, impressive smart functions, so it is always there for you when needed.
Features
- Highest image quality due to high resolution
- Detecting temperature differences from as little as 0.06°C
- Built-in digital camera generates a real image in parallel to the thermal image
- Automatic detection of hot and cold spots
- Pro software for image evaluation on the PC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -15 °C | |
| max. operating temperature | 50 °C | |
| Field of View | 42° x 30° | |
| Resolution | 320 x 240 pixel | |
| Frame recording frequency | 9 Hz | |
| Minimum Focus Distance | 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90251900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
