0564 5703 | Testo

Testo smart vacuum kit, 0564 5703, testo 570s Smart Vakuum Set Füllschlauch

Order No.: 22K8643
EAN: 4029547025938
MPN:
0564 5703
testo 570s Smart Vakuum Set Füllschlauch

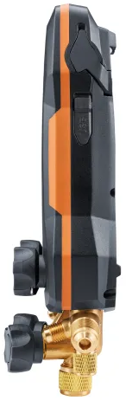

0564 5703 Testo Anemometers, Gas and Pressure Measuring Instruments Image 1

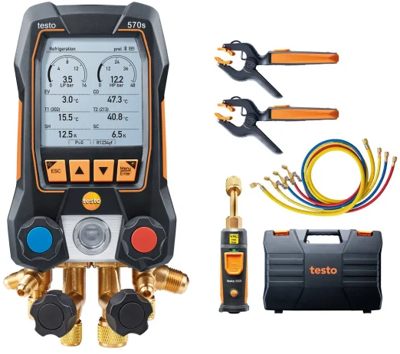

0564 5703 Testo Anemometers, Gas and Pressure Measuring Instruments Image 2

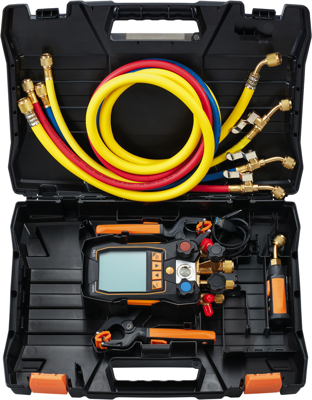

0564 5703 Testo Anemometers, Gas and Pressure Measuring Instruments Image 3

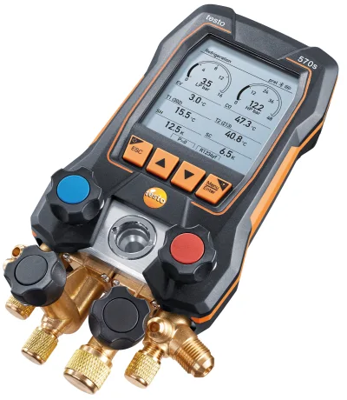

0564 5703 Testo Anemometers, Gas and Pressure Measuring Instruments Image 4

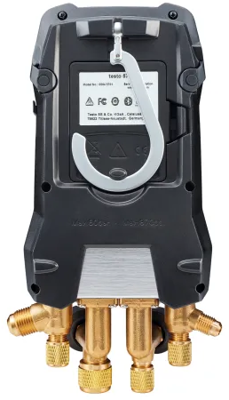

0564 5703 Testo Anemometers, Gas and Pressure Measuring Instruments Image 5
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Testo 558s - Smart Vacuum Kit incl. Data Logging
Testo 558s - Smart Vacuum Kit incl. Data Logging
Order No.: 22K8655
Manufacturer: Testo
per pc. 831.81 € *

Smart vacuum kit, 0564 5703, Testo

The 0564 5703 is a smart digital manifold with wireless vacuum and clamp temperature probes and 4-piece hose filling set is ideal for long-term and standard measurements. The intelligent error analysis in the Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.

Features

  • Long-term measurement with intelligent error analysis in the Smart App
  • Suitable for use with A3 and A2L refrigerants
Technical specifications
Filter Property Value
Resolution 0.1 °C, 0.01 bar, 1 micron to 100 micron
measurement range -1 to 60 bar, 0 to 20000 micron
Degree of protection (IP) IP54
max. operating temperature 50 °C
Accuracy ±0.5 °C, ±0.25 % fs, ±10 micron + 10 %
min. operating temperature -20 °C
Version with filling hoses
Product type smart vacuum kit
Logistics
Property Value
Country of origin CN
Customs tariff number 90262020
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
Replacement
