0564 5572 | Testo
Testo digital manifold, 0564 5572, testo 557s Smart Vakuum Set
Order No.: 22K8617
EAN: 4029547023538
MPN:
0564 5572
testo 557s Smart Vakuum Set
Unit Price (€ / pc.)
836.5700 € *
Standard delivery time from the manufacturer is: On Request
Vacuum kit, 0564 5572, Testo

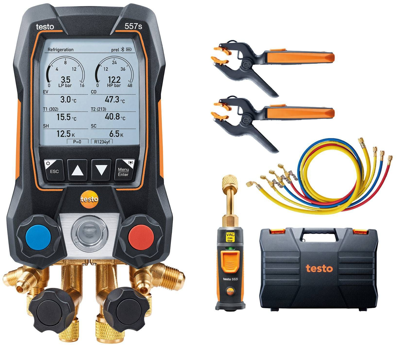

For completely wireless measurements on refrigeration and air conditioning systems and heat pumps. Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses. You will get the smart digital manifold with Bluetooth and 4-way valve block, one wireless vacuum probe (Bluetooth), two wireless clamp thermometers (Bluetooth, NTC), a hose filling set with 4 hoses and a robust transport case.
Features
- Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth connection, Smart App for documentation and lots more
Technical specifications
| Version | with filling hoses | |
| Accuracy | ±0.5 % | |
| measurement range | -1 to 60 bar | |
| Product type | digital manifold | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 50 °C | |
| Resolution | 0.01 bar | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Customs tariff number | 90262020 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
