0564 5502 | Testo
Testo digital manifold, 0564 5502, testo 550s Smart Set
Order No.: 22K8601
EAN: 4029547023507
MPN:
0564 5502
testo 550s Smart Set
Unit Price (€ / pc.)
583.10 € *
Standard delivery time from the manufacturer is: On Request
Smart Kit, 0564 5502, Testo

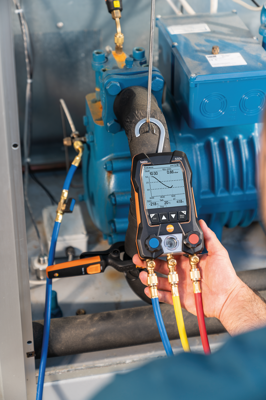

Smart Kit with filling hoses - Smart digital manifold with wireless clamp temperature probes and hose filling set with 3 hoses. The kit for wireless measurements in the field of commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two testo 115i wireless clamp thermometers (Bluetooth, NTC), a set with 3 filling hoses and a robust transport case. Additional Bluetooth probes, e.g. for wireless, hose-free vacuum measurements with the testo 552i, are available separately.
Features

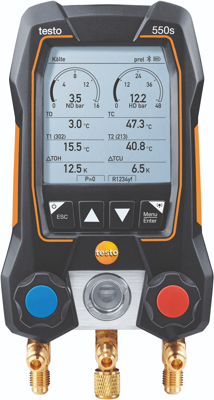

- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more

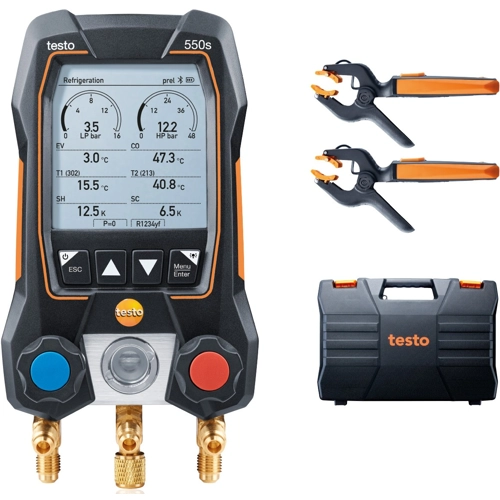

- Testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), hose filling set with 3 hoses, case
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Accuracy | ±0.5 % | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -20 °C | |
| Version | with wireless clamp temperature sensors | |
| measurement range | -1 to 60 bar | |
| Degree of protection (IP) | IP54 | |
| Product type | digital manifold | |
| Resolution | 0.01 bar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90262020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
