0563 4200 | Testo

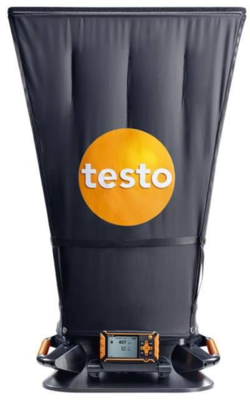

Testo volume flow measuring hood with measuring device, 0563 4200, testo 420 Set
Order No.: 21K9016
EAN: 4099891464455
MPN:
0563 4200
testo 420 Set
Unit Price (€ / pc.)
3,447.43 € *
Available in 5 Days: 66 pcs. - if ordered today
Volume flow measuring hood with measuring instrument, 0563 4200, testo 420 Set
Get the testo 420 volumetric flow measuring hood for larger ceiling diffusers and benefit in several ways when servicing air handling systems. The measuring hood with removable measuring device is not only uniquely lightweight, it also guarantees precise volume flow rate calculations at swirl diffusers.
Features
- Volume flow measuring hood for larger ceiling outlets for measuring volume flow, temperature and relative humidity
- Impressively light at 2.9 kg weight

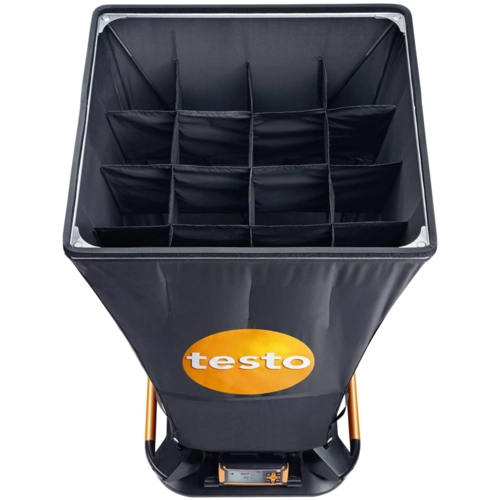

- Precise measurement even at swirl diffusers thanks to integrated volume flow rectifier
- Fast set-up, convenient operation and on-site logging via app
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Relative Humidity Range | 0 % to 100 % | |
| Resolution | 0.001 Pa, 0.1 hPa, 1 m³/h | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -5 °C | |
| measurement range | -120 to 120 Pa, 700 to 1100 hPa, 50 to 4000 m³/h | |
| Product type | volume flow measuring hood with measuring device | |
| Version | 3.5 inch LCD with illumination | |
| Accuracy | ±2 %, ±3 hPa, ±3 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90262020 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 7/1/08 |
