0563 3240 70 | Testo
Testo measuring device, 0563 3240 70, testo 324 Basis-Set
Order No.: 21K9092
EAN: 4099891464752
MPN:
0563 3240 70
testo 324 Basis-Set
Unit Price (€ / pc.)
1,902.81 € *
Standard delivery time from the manufacturer is: On Request
Pressure and leakage measuring device, 0563 3240 70, Testo
Features
- DVGW-tested pressure and leakage measuring device
- Step-by-step guidance through directive-compliant measuring menus: Easily perform gas line tests
- Automatic pressure build-up up to 300 mbar by means of integrated pressure pump; manual test pump for generating higher pressures, e.g. for 1 bar testing
Ordering information:

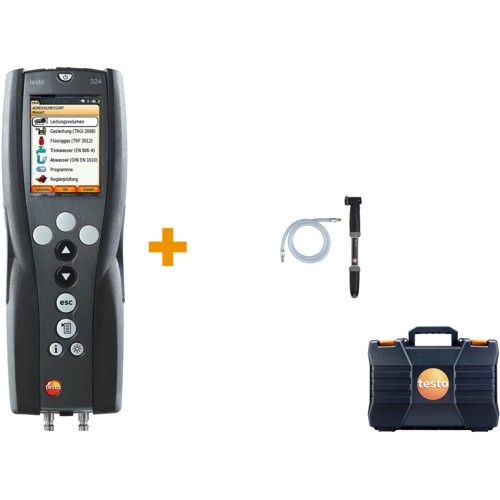

- DVGW-tested pressure and leakage measuring device testo 324 including battery and calibration protocol
- Power supply unit for testo 324

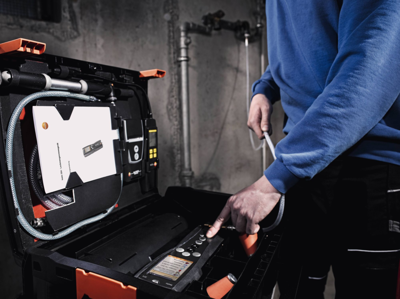

- System case including feed device, connection hose and connection block (device, pump, hose connection including pressure relief valve and stopcock)
- Manual test pump to create the test pressure
- Adapter for the measuring connection of gas heaters
- High pressure step plug with 3/4" and 1 1/4"
- Connection sketches in laminated form: Gas line, drinking water, waste water & liquid gas line tests.
Technical specifications
| Version | gas/water pipes | |
| Accuracy | ±3 % | |
| measurement range | 0 to 1000 hPa | |
| Product type | pressure/leakage meter | |
| min. operating temperature | 5 °C | |
| max. operating temperature | 40 °C | |
| Resolution | 1200 hPa | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Customs tariff number | 90271010 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 7/1/08 |
| RoHS conform | Yes |
