0560 2549 02 | Testo

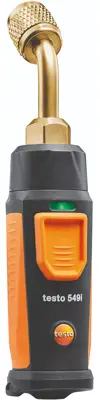

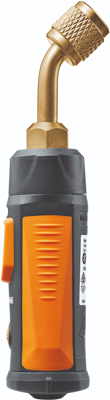

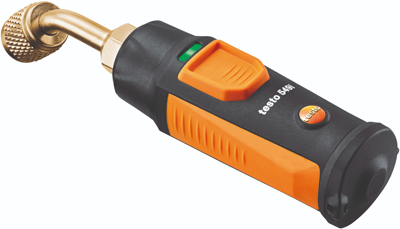

Testo high pressure measuring device, 0560 2549 02, testo 549I
Order No.: 22K8591
EAN: 4029547022500
MPN:
0560 2549 02
testo 549I
Unit Price (€ / pc.)
110.67 € *
Standard delivery time from the manufacturer is: On Request
High-pressure gauge, 0560 2549 02, Testo

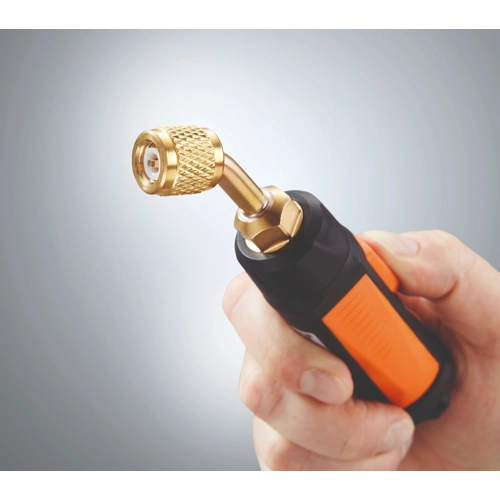

High-pressure gauge operated via smartphone. The professional and compact testo 549i high-pressure gauge with 45 degree connector can be controlled via the testo Smart Probes App using your smartphone or tablet, and is ideal for carrying out servicing and troubleshooting on air conditioning and refrigeration systems. The App also enables evaporation and condensation temperatures to be calculated automatically.
Features
- Measurement of high and low pressure
- Low refrigerant loss – since no hoses are required for measurements
- Live data feed integration now available with the MeasureQuick App

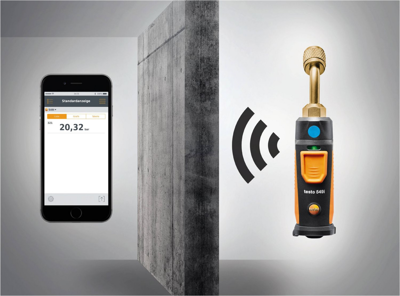

- Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 350 ft
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Accuracy | ±0.5 % | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -20 °C | |
| Version | with smartphone operation | |
| measurement range | -1 to 60 bar | |
| Product type | high pressure measuring device | |
| Resolution | 0.01 bar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90262020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
