TESTBOY TV 410 N | Testboy

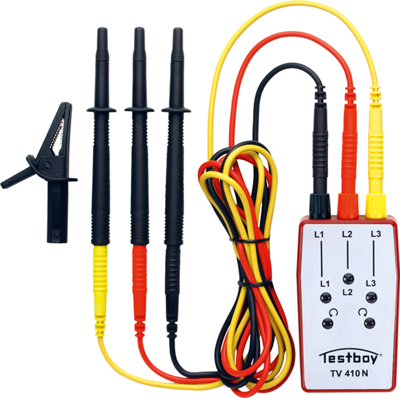

Rotary field direction indicator, Testboy TESTBOY TV 410 N
Order No.: 24K212
EAN: 4028532200411
MPN:
TESTBOY TV 410 N
61801000
Unit Price (€ / pc.)
80.801 € *
Available: 3 pcs.
Total Price:
80.80 € *
Price list
Quantity
Price per unit*
1 pcs.
80.801 €
5 pcs.
74.851 €
*incl. VAT plus shipping costs
Subject to prior sale
Phase sequence indicators, type Testboy TV 410N.
The direction of rotation is determined based on the phase sequence indicated by the 5 glow lamps; Voltage range: 60 to 400 VAC. Current consumption: max. 3.0 mA. Frequency range: 50/60 Hz. Duty cycle: 30 s. Power supply: from the measured object. Overvoltage category: CAT III 400 V. Degree of protection: IP 44. Housing material: ABS plastic. Approval: IEC/EN 61010-1. Dimensions: 115 x 60 x 25 mm. Weight: 75 g. Supplied with 3 test probes, 3 x 4.0 mm safety leads, alligator clip, service bag and Operating Instructions.
Type: TV 410N, phase sequence indicator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with 5 glow lamps | |
| Batteries | AA | |
| Product type | rotary field direction indicator | |
| Voltage | 400 VAC | |
| Audio Signal | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303370 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
