TK0060B.J.1,00.C.85.A | Tekon

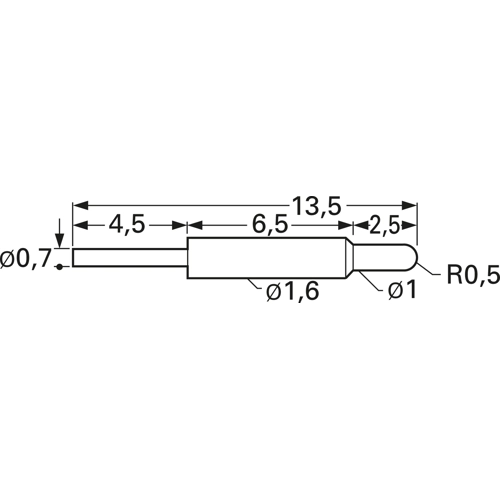

Charge and battery contact, round head, Ø 1.6 mm, travel  2.5 mm, pitch 2.54 mm, L 13.5 mm, TK0060B.J.1,00.C.85.A

Order No.: 12H1355
EAN: 4099889467567
MPN:
TK0060B.J.1,00.C.85.A
Series: 0060B
TK0060B.J.1,00.C.85.A Tekon Contact Probes
Image may differ
Unit Price (€ / pc.)
3.3915 € *
Available: 618 pcs.
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
2.4157 €
100 pcs.
2.0706 €
500 pcs.
1.7969 €
1000 pcs.
1.6303 €
*incl. VAT plus shipping costs
Subject to prior sale

Charging and battery contacts, 2.54 mm grid, type Tekon TK0060B.

Receptacle: gold-plated brass. Spring: gold-plated steel. Tip: gold-plated steel CuBe. Rated current: 3.0 A. Max. spring travel: 2.5 mm. Working stroke: 1.8 mm. Spring force: 85 cN ±20 %. Contact resistance: max. 40 mohm.

Type: TK0060B, charging and battery contact.

Technical specifications
Head shape round head
Rated current 3 A
Stroke 2.5 mm
Grid 2.54 mm
Length 13.5 mm
diameter 1.6 mm
Material steel
Logistics
Country of origin DE
Customs tariff number 90319000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
